| Antenna Structure Registration 1002407 | |
| Registration Number: 1002407 | ||
| File Number: A1075047 | ||
| FAA Study: 2006-AWP-5792-OE | ||
| FAA Issue Date: 10/31/2006 | ||
| Status: Constructed | ||
| Date Constructed: 01/01/1988 | ||
| NEPA: N | ||
| | Structure Type: LTOWER | |
| Structure Coordinates: 32-24-54.0 N 110-42-57.9 W (NAD 83) | ||
| Structure Coordinates: 32-24-53.7 N 110-42-55.6 W (Converted to NAD 27) | ||
| Structure Address: Mt. Bigelow, 1.4 Mi. N Of General Hitchcock (bigelow Mt. #9001) | ||
| Structure City: Coronado Natl Forest, AZ | ||
| Structure County: Pima County | ||
| |
FAA Circular #: 70/7460-1K | FAA Chapters: 3, 4, 5, 12 | Remarks: PRIOR STUDY 2004-AWP-5531-OE | Remarks: OM&L to remain the same as prior study = PAINT/RED LIGHTS | Remarks: PRIOR STUDY 2004-AWP-5531-OE | Remarks: OM&L to remain the same as prior study = PAINT/RED LIGHTS |
| |

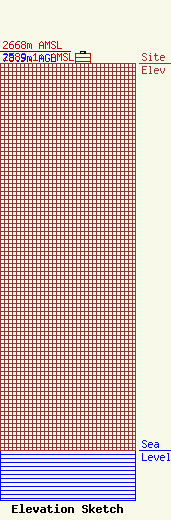

Site Elevation: 2589.1 meters (8494 ft) | |
| Height of Structure: 66.4 meters (218 feet) | ||
| Overall Height Above Ground: 78.9 meters (259 feet) | ||
| Overall Height Above Mean Sea Level: 2668 meters (8753 feet) | ||
| | American Towers LLC 10 Presidential Way Woburn, MA 01801 (781) 926-4500 FAA-FCC@americantower.com | |
| | American Tower, LLC 10 Presidential Way Woburn, MA 01801 (781) 926-4500 FAA-FCC@americantower.com | |
