| Antenna Structure Registration 1009155 | |
| Registration Number: 1009155 | ||
| File Number: A1169761 | ||
| FAA Study: 2015-AGL-13106-OE | ||
| FAA Issue Date: 10/19/2015 | ||
| Status: Constructed | ||
| Date Constructed: 01/01/1984 | ||
| NEPA: N | ||
| | Structure Type: MAST | |
| Structure Coordinates: 41-52-8.8 N 87-41-35.9 W (NAD 83) | ||
| Structure Coordinates: 41-52-08.7 N 87-41-35.7 W (Converted to NAD 27) | ||
| Structure Address: 1003 S Washtenaw St | ||
| Structure City: Chicago, IL | ||
| Structure County: Cook County | ||
| |
FAA Circular #: 70/7460-1K | FAA Chapters: 4, 8, 12 | Remarks: PRIOR STUDY 2015-AGL-12552-OE | Remarks: OM&L to remain the same as prior study = A MED-DUAL SYSTEM | Remarks: PRIOR STUDY 2015-AGL-12552-OE | Remarks: OM&L to remain the same as prior study = A MED-DUAL SYSTEM |
| |

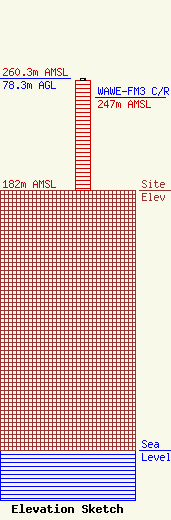

Site Elevation: 182 meters (597 ft) | |
| Height of Structure: 76.5 meters (251 feet) | ||
| Overall Height Above Ground: 78.3 meters (257 feet) | ||
| Overall Height Above Mean Sea Level: 260.3 meters (854 feet) | ||
| WAWE-FM3 C/R Height Above Mean Sea Level: 247 meters (810 ft) | ||
| | American Towers LLC 10 Presidential Way 01801 Woburn, MA 01801 (781) 926-4500 faa-fcc@americantower.com | |
| | American Towers LLC 10 Presidential Way 01801 Woburn, MA 01801 (781) 926-4500 faa-fcc@americantower.com | |
